DX200 VNG/Eye Tracking Platform

DX200 VNG / Eye-Tracking

Spryson is driven by an overarching desire to create the most precise and powerful VNG and Eye-Tracking technology in the world. The DX200 series is the platform of choice for research facilities and the most modern clinicians.

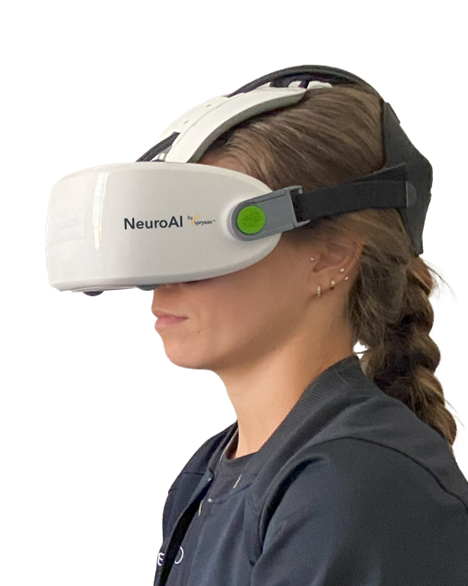

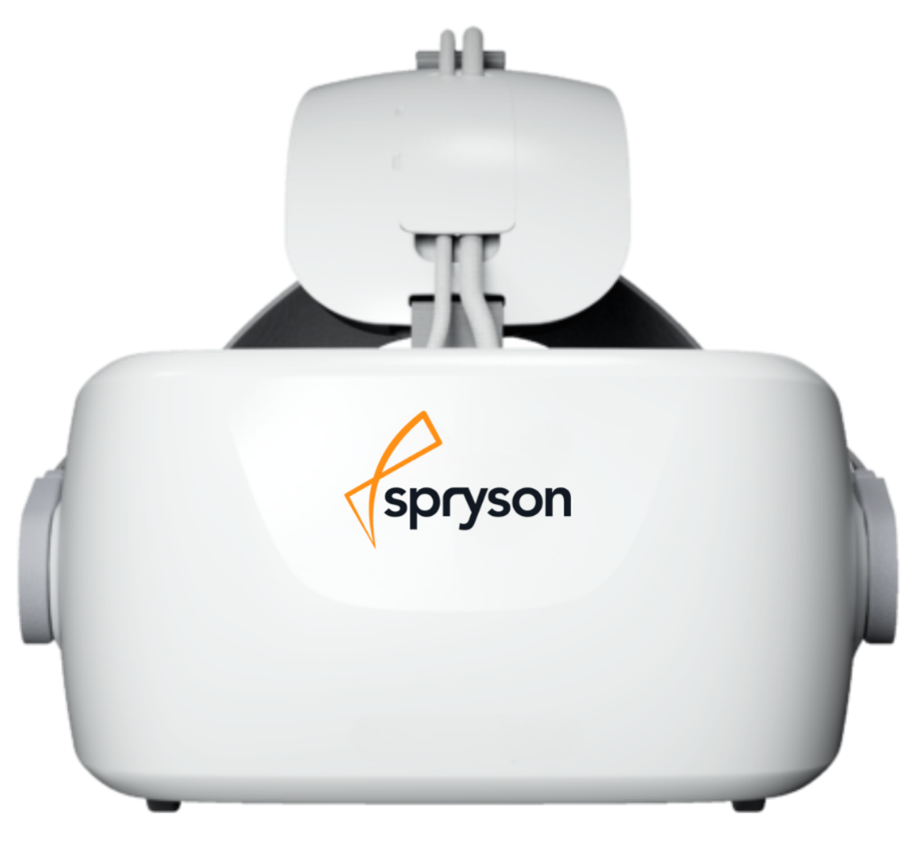

DX200 Hardware

The DX200 is an industry-leading VNG platform featuring a virtual 3D display integrated into a compact and highly portable package. In addition to the standard battery of VNG tests, the virtual 3D environment provides advanced tests, not available elsewhere, that are useful in concussion, mTBI, and the neurologic patient populations.

The DX200’s precision and data gathering capability are unsurpassed. At a 250 Hz sampling rate and a spatial resolution of 0.01° (horizontal and vertical) and 0.1° (torsional), it can see what other systems miss—precision matters in research and patient care.

To speed up and standardize data collection, our VEST software features automated voice instructions and the ability to group similar tests together, allowing them to be performed in a single block.

VEST includes FDA-cleared and published normative ranges. Clinicians and researchers in sports medicine and concussion management utilize the DX200’s portability to perform preseason baseline assessments and post-concussion follow-up evaluations.

Ocular Motor, Vestibular and Reaction Time Tests

Vergence pursuit
Vergence steps
Anti-saccades
Predicted saccades
Subjective visual vertical and horizontal
Auditory and visual reaction times
Dual-task tests that combine eye movement and motor tasks

Hardware Specs

Records both eyes simultaneously
Goggle weight 595 grams (1.31 lbs)
Sampling rate up 250 Hz
Resolution in pixels 348×248
Spatial resolution / Tracking accuracy 0.01⁰ Horizontal and Vertical, 0.1⁰ Torsional
Eye Tracking Range ±30° Horizontal and Vertical; ±10° Torsional
Pupillary Distance Fit 55 to 70 mm
Diopter Correction ±4 diopters per eye
USB level USB 3.0
System latency 4 msec
Torsion recording
Pupil diameter recording
Pitch, yaw and roll sensors

DX Series Software

Spryson’s neuro-otologic analysis software (VEST™) offers a visual and easy to use interface. All NOTC and VNG tests are built into one software platform, eliminating the need for multiple software packages.

Key Features

Clinical utility with research level power to create protocols and custom tests
Clinical speed and ease of use for quick patient evaluation and accurate analysis
Real time binocular data and stimulus feedback including video image with no lag time
Easy to understand data reporting for patient files with normative ranges clearly designated for each test
Separate examiner and administration login with password protection

Clinical Test Menu

Spryson’s Brain Health Assessment includes a comprehensive menu of oculomotor, cognitive, vestibular and reaction time tests, including tests not offered in other integrated systems such as vergence and reaction time. This includes a diversity of data-rich variables and analytics. The Spryson Platform allows clinicians and researchers the ability to compare individual results over time and to benchmark against FDA cleared normative data.

A Quantum Shift in Brain Health and Wellness

Spryson is on a mission to create a quantum shift in the clinical approach to neurodegenerative disease while simultaneously revolutionizing brain health and wellness.

Collaborations

Spryson has collaborated with leading clients to diagnose, treat, and monitor patients, healthy individuals, and elite athletes globally. Spryson supplies neurofunctional diagnostic and assessment tools to neurologists, audiologists, physical therapists, chiropractors, researchers, ENTs, neurotologists, and neuro-ophthalmologists around the world.
